OptiFiber HDR and OptiFiber Pro Model Comparison

OptiFiber Pro HDR is Designed for Enterprise, Datacenter, Outside Plant and PON Fiber

随着光纤网络的发展,在更多地方进行测试的需求也在增加。现在以下领域都需要 OTDR:

  • FTTx
  • 企业
  • OSP
  • PON

许多专为光纤故障诊断而设计的 OTDR 是面向运营商的,包括繁琐而复杂的功能。OptiFiber Pro OTDR 系列是一级 OTDR 设备,具有多种功能且简单易用,同时面向企业网络工程师以及在企业和 OSP 环境中工作的线缆安装人员。

Overview of the OptiFiber Pro HDR Module

The OptiFiber® Pro HDR (High Dynamic Range) Optical Time Domain Reflectometer (OTDR) module attaches to a Versiv and Versiv™ 2 main unit to make a rugged, hand-held tester that lets you locate, identify, and measure reflective and loss events on singlemode fibers in outside plant (OSP) and premises installations. The HDR OTDR test results includes the location and performance of unpowered (passive) splitters used in PON (passive optical network) installations. A typical maximum test range is 260 km for a link with no splitters. The modules include these features:

  • Automatic analysis of OTDR traces and events helps you identify and locate faults on singlemode fiber.
  • Shows OTDR results as an intuitive map of events, a table of events, and an OTDR trace. PON OTDR test results include the locations and split ratios of optical splitters.
  • Automatic bi-directional averaging gives you more accurate loss measurements than measurements made in one direction.  OptiFiber HDR is capable of calculating bi-directional averages on-board so you can measure the loss of events more accurately in the field without having to work through software on a PC.
  • “Document Only” test limit is available if PASS/FAIL results are not necessary.
  • SmartLoop™ OTDR 技术可在一次测试中进行双光纤测试,无需移至接线的远端进行测试。

See Also NEW FEATURES of OptiFiber Pro HDR

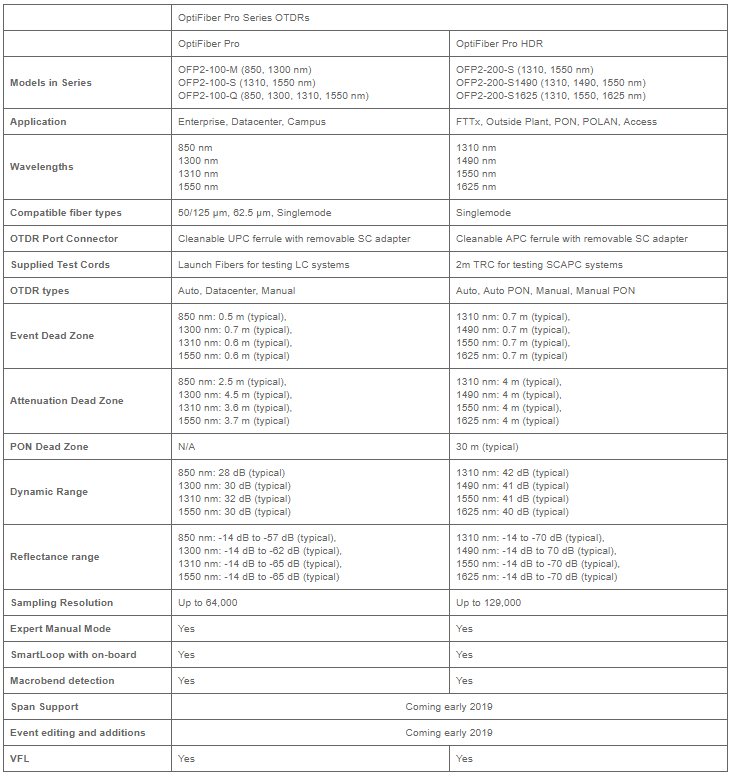

How does OptiFiber Pro HDR compare to the OptiFiber Pro Quad Module?
